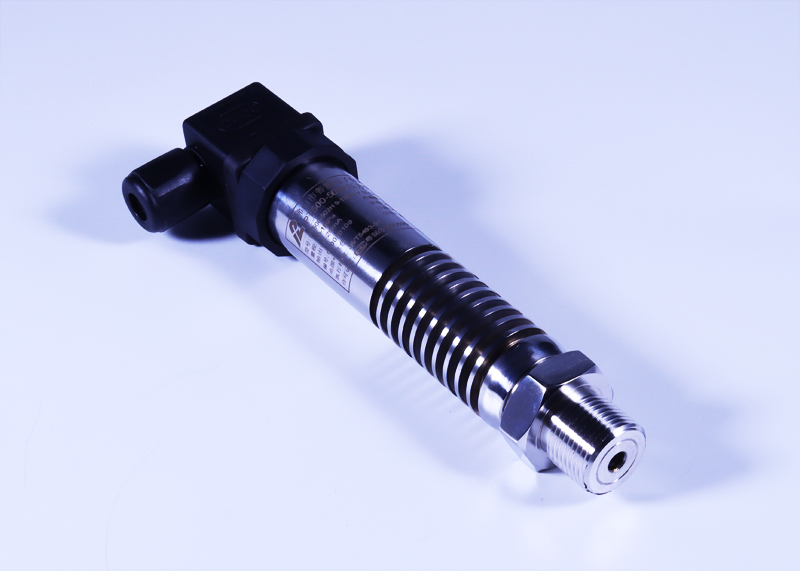

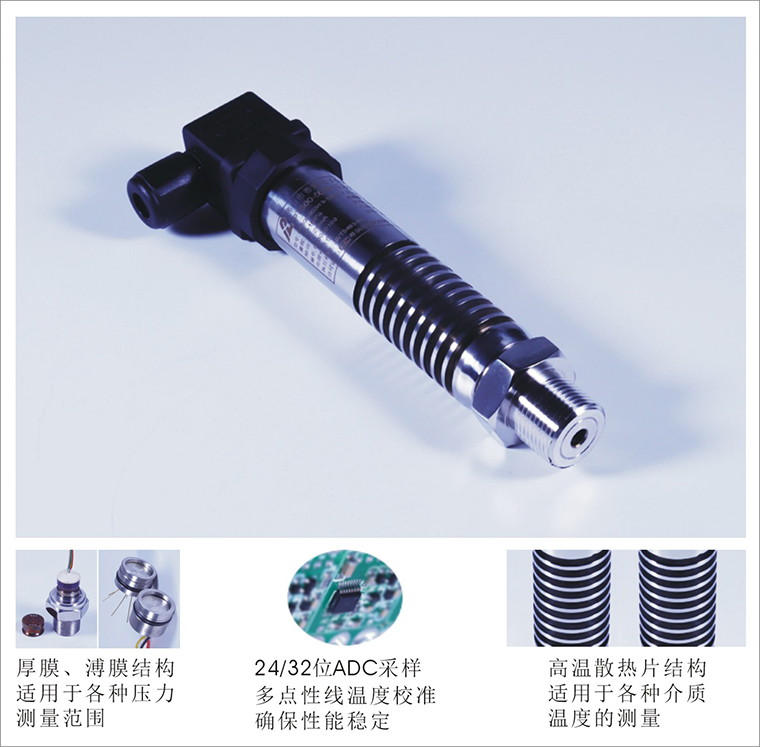

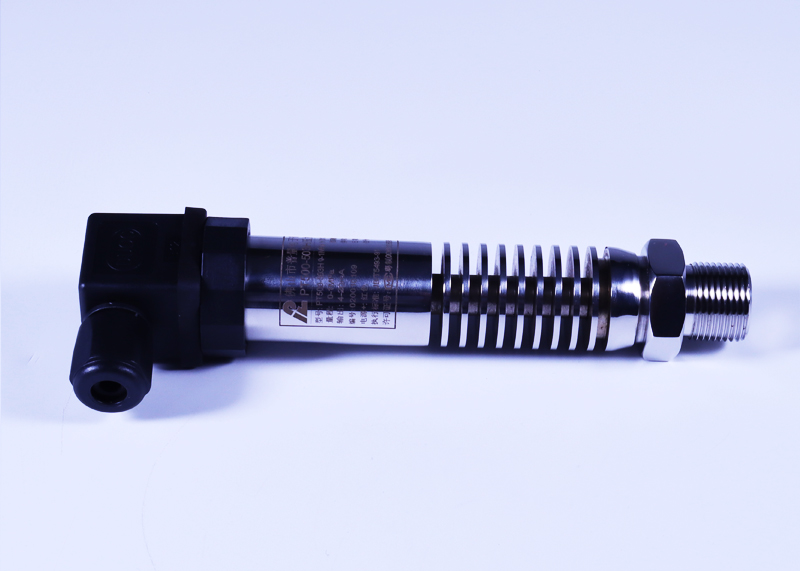

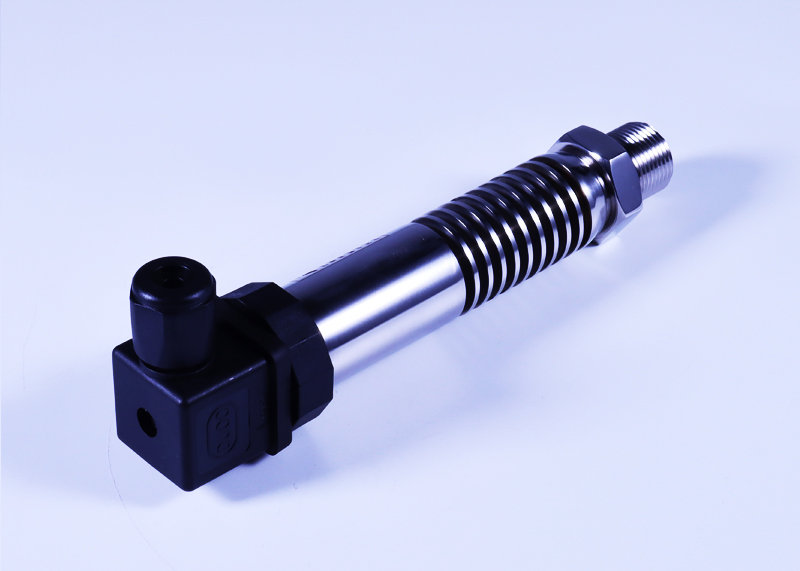

規格參數
一、技術參數
測量介質：液體、氣體、蒸汽等
壓力形式：表壓、絕壓
量 程：
0～0.6、1、2、5、10、15、20、25、30、40、50、60、100（MPa）；
0～10、20、30、50、100、150、200、300、400、500、600（KPa）；
-100KPa～10KPa～40MPa；
±10KPa～±100KPa；
綜合精度：±0.25%FS；±0.5%FS；±1%FS
非 線 性：≤0.5%FS
重 復 性：≤0.25%FS

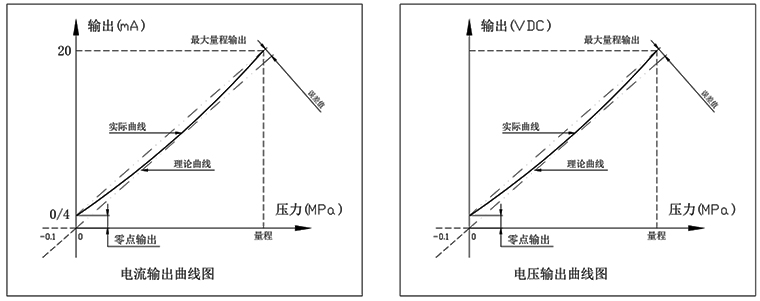

輸出信號：
電流型：4～20mA二線制；4～20mA/0-20mA三線制
電壓型：0～5VDC、0～10VDC、0.5～4.5VDC三線制
數字型：RS485-RTU、低功耗RS485-RTU
Can2.0B（支持CANopen、J1939 協議）
供電電壓：
24VDC(9～30VDC)
5VDC（0.5～4.5VDC輸出型）
3.1～6.1VDC（低功耗RS485-RTU）
壽 命：≥100萬次
絕緣阻抗：≥1000 MΩ/100VDC
負載阻抗：電流輸出: ≤800Ω；電壓輸出：≥50KΩ
介質溫度：-20～150℃/250℃/350℃/500℃/
環境溫度：-20～70℃
補償溫度：0～70℃
響應時間：≤5mS
過載壓力：150%FS
破壞壓力：3倍量程(量程小于40MPa)；2倍量程(量程大于41MPa)
電氣連接：防水緊線螺母直接出線，可配套防爆電氣連接
防護等級：IP65/IP68
連接電纜：赫斯曼(DIN43650)/緊線螺母/航空連接器等，標準長度：3米
連接材料：304/316L
過程連接：M20X1.5,G1/2,ZG1/2，1/2NPT，DN50……可用戶制訂規格

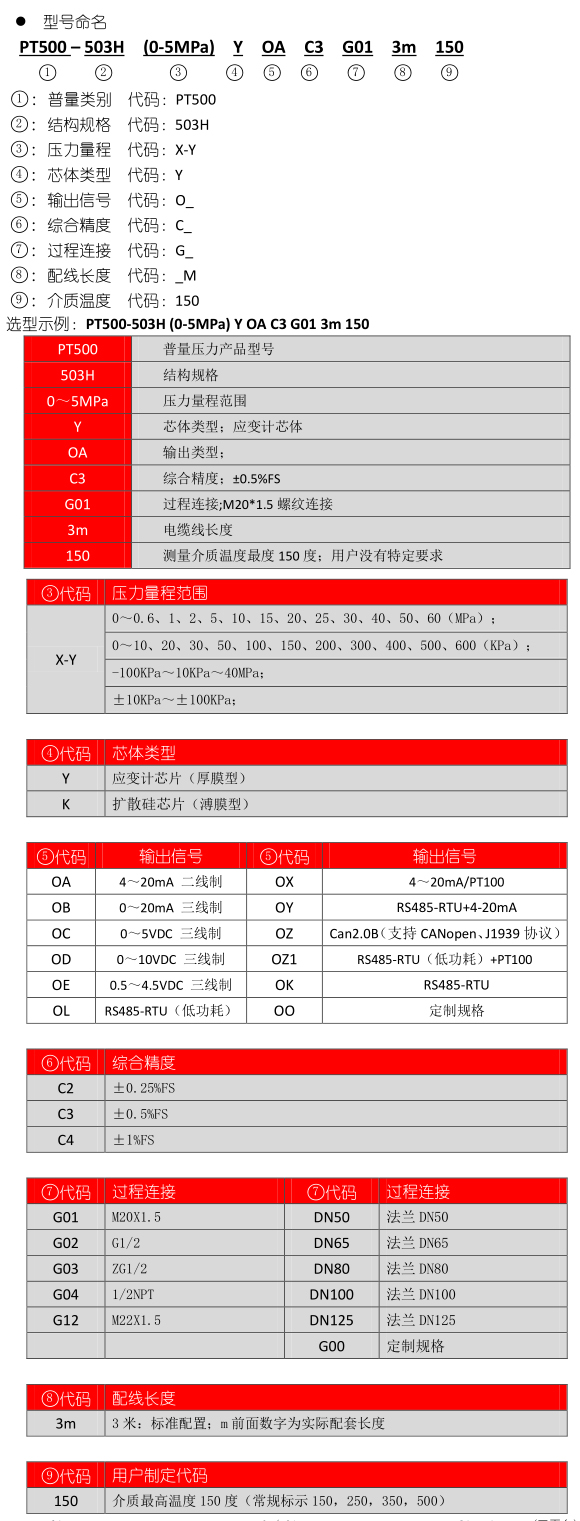

二、規格型號

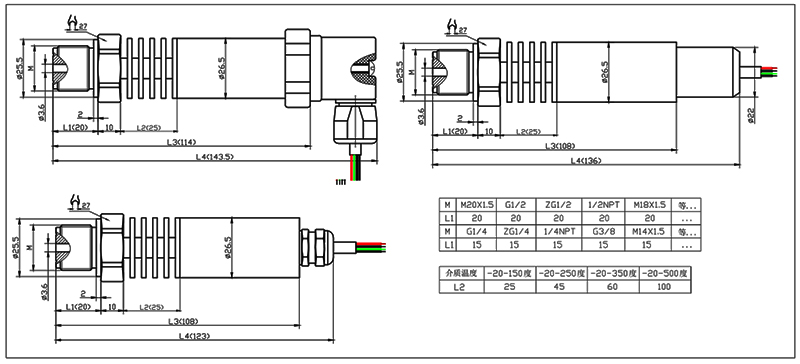

三、結構尺寸

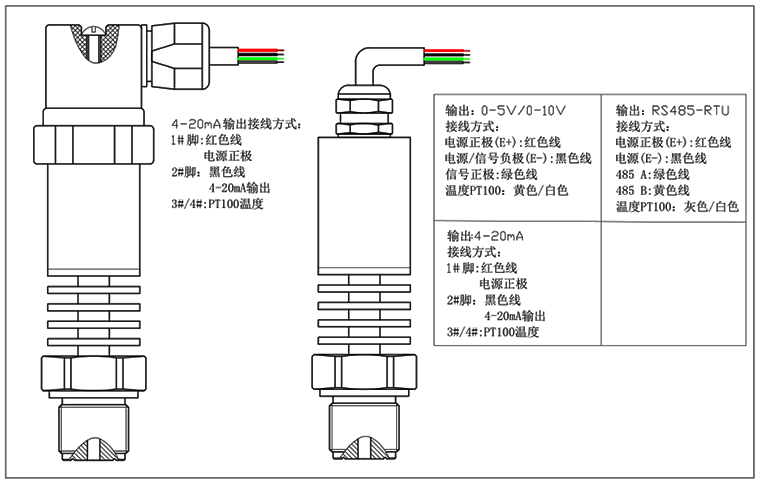

四、電氣連接
A、模擬信號輸出：
B、RS485-RTU數字信號輸出：
C、低功耗RS485-RTU數字信號輸出：

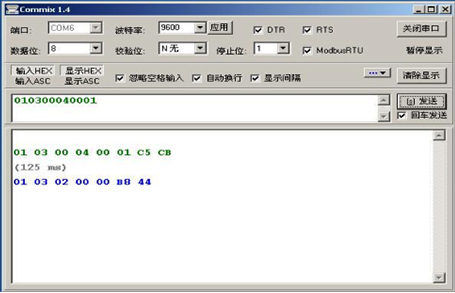

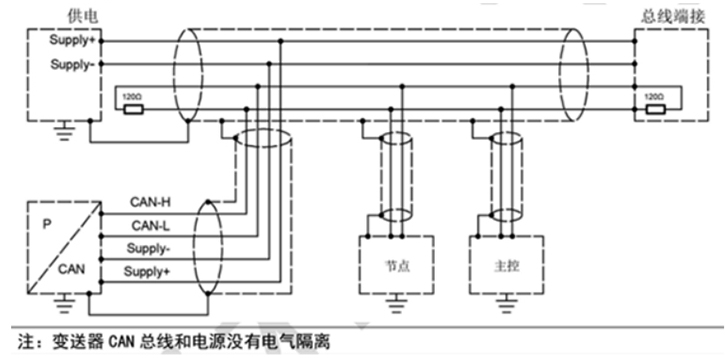

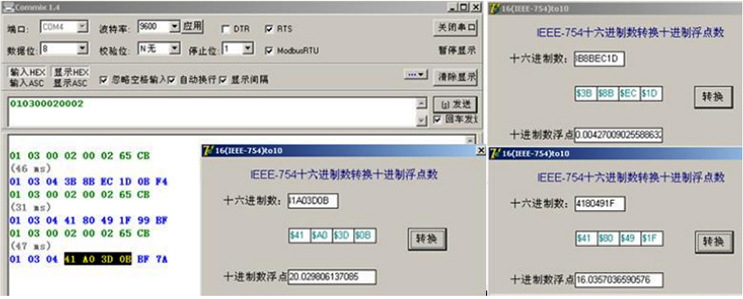

D、CAN2.0總線信號輸出：

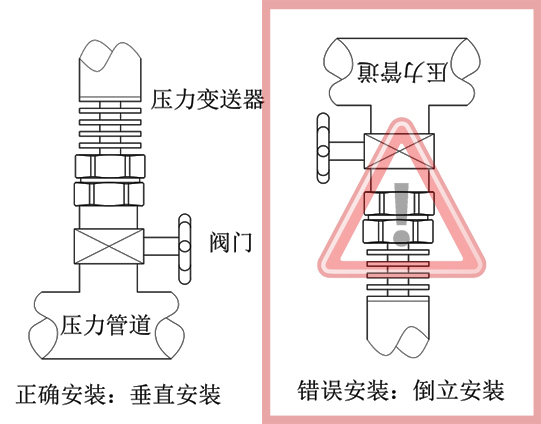

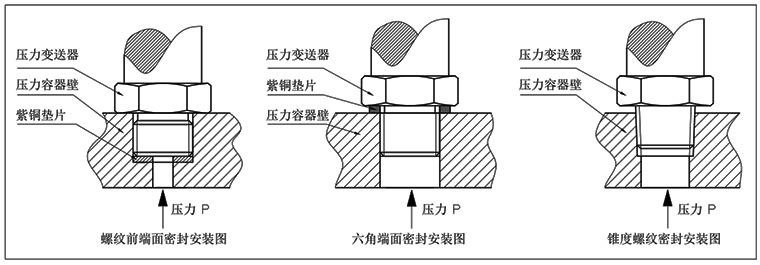

五、安裝方式
Measuring medium: liquid, gas, steam, etc
Pressure form: gauge pressure, absolute pressure
Range:
0～0.6、1、2、5、10、15、20、25、30、40、50、60、100（MPa）；
0～10、20、30、50、100、150、200、300、400、500、600（KPa）；
-100KPa～10KPa～40MPa；
±10KPa～±100KPa；
Comprehensive accuracy: ± 0.25% FS; ± 0.5% FS; ± 1% FS
Nonlinearity: ≤ 0.5% FS
Repeatability: ≤ 0.25% FS
Output signal:
Current type: 4-20mA two-wire system; 4-20mA / 0-20mA three-wire system
Voltage type: 0 ~ 5VDC, 0 ~ 10VDC, 0.5 ~ 4.5vdc three wire system
Digital type: rs485-rtu, low power rs485-rtu
CAN2.0B (supports CANopen, J1939 Protocol)
Supply voltage:
24VDC(9～30VDC)
5VDC (0.5 ～ 4.5vdc output type)
3.1 ~ 6.1vdc (low power rs485-rtu)
Service life: ≥ 1 million times
Insulation impedance: ≥ 1000 m Ω / 100VDC
Load impedance: current output: ≤ 800 Ω; voltage output: ≥ 50K Ω
Medium temperature: - 20 ～ 150 ℃ / 250 ℃ / 350 ℃ / 500 ℃/
Ambient temperature: - 20 ～ 70 ℃
Compensation temperature: 0 ～ 70 ℃
Response time: ≤ 5ms
Overload pressure: 150% FS
Failure pressure: 3 times of measuring range (less than 40MPa); 2 times of measuring range (measuring range greater than 41mpa)
Electrical connection: Waterproof tight wire nut directly leads out, can be matched with explosion-proof electrical connection
Protection grade: IP65 / IP68
Connecting cable: hesman (din43650) / tightening nut / aviation connector, etc., standard length: 3M
Connection material: 304 / 316L
Process connection: m20x1.5, G1 / 2, ZG1 / 2, 1 / 2NPT, DN50 Specification can be made by users
訂購注意事項

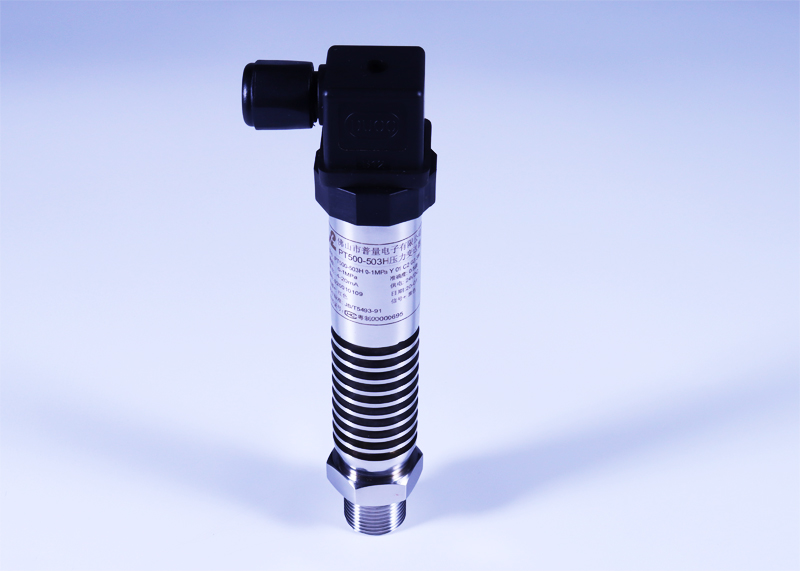

PT500-503H產品訂購注意事項
1、產品量程選擇：
為了使產品精度、壽命、穩定性等功能達到最佳效果，產品的量程選擇參照以下公式計算：
量程 = 系統最大壓力 X （1.2-1.5）倍；
產品的實際測量壓力范圍，應該在量程范圍的15%-80%；
2、產品供電及輸出：
供電范圍的選擇按產品的個輸出規格確定：
常規4-20mA/0-20mA、0-5V/10V輸出，直流12-30VDC供電；
通用RS485-RTU輸出，直流12-30VDC供電；
0.5-4.5VDC輸出，直流5VDC；
3、用戶要了解產品的測量介質特性：
介質規格、介質溫度、介質純度（是否含有雜質或顆粒等）；
4、用戶要了解產品的安裝環境及安裝方式：
室內或室外安裝；
環境溫度；
要求的密封等級；
設備的振動范圍；
安裝方式：螺紋、法蘭、特殊結構；
安裝空間是否滿足產品外形尺寸；
Precautions for ordering PT500-503H products
1. Product range selection:
In order to achieve the best effect of product accuracy, life, stability and other functions, the range selection of the product is calculated by referring to the
following formula:
Range = x (1.2-1.5) times of the maximum system pressure;
The actual measuring pressure range of the product should be 15% - 80% of the range;
2. Product power supply and output:
The selection of power supply range is determined according to the output specifications of the product:
Conventional 4-20mA / 0-20mA, 0-5V / 10V output, DC 12-30vdc power supply;
General rs485-rtu output, DC 12-30vdc power supply;
0.5-4.5vdc output, DC 5VDC;
3. The user should understand the measurement medium characteristics of the product:
Medium specification, medium temperature, medium purity (whether containing impurities or particles, etc.);
4. Users should understand the installation environment and installation method of the product:
Indoor or outdoor installation;
Ambient temperature;
Required sealing level;
Vibration range of equipment;
Installation method: thread, flange, special structure;
Whether the installation space meets the overall dimension of the product;
使用注意事項
嚴禁產品供電范圍超過產品規定標準；
嚴禁使用硬物（如：螺絲刀、手指、鐵釘?shù)龋┤ナ沟脡毫δて軌毫y量輸出；
電源和信號線按訂購產品規格要求，正確接線；
產品安裝時，受力部位為“過程連接六方扳手位”，扳手規格與六方相對應；
嚴禁被測系統的介質溫度、壓力量程、激勵電壓超過變送器的額定使用范圍；
注意保護變送器引出電纜，現場使用跨度過大時，建議使用金屬管保護或架空；
壓力變送器屬精密計量儀器，切勿強加沖擊、摔打，以免損壞芯體
產品安裝于通風、干燥、無強腐蝕環境，露天安裝加防護裝置，避免陽光直接照射；
產品儀表嚴禁進水/漏水/泡水情況，露天安裝加防護裝置，避免陽光直接照射；
It is strictly prohibited that the power supply scope of the product exceeds the product standard;
It is forbidden to use hard objects (such as: screwdrivers, fingers, nails, etc.) to make the pressure diaphragm output by pressure measurement;
The power supply and signal lines shall be correctly connected according to the product specifications;
When the product is installed, the stress part is "process connection hexagonal wrench", and the wrench size is corresponding to the hexagonal wrench;
It is strictly prohibited that the medium temperature, pressure range and excitation voltage of the measured system exceed the rated range of the transmitter;
Pay attention to protect the outgoing cable of transmitter. When the span is too large, it is recommended to use metal tube for protection or overhead;
Pressure transmitter is a kind of precision measuring instrument. Do not force impact and fall to avoid damaging the core
The product is installed in a ventilated, dry and non corrosive environment. It is installed in the open air with protective devices to avoid direct sunlight;
Water / water leakage / soaking is strictly prohibited in the instrument of the product. Protective devices are installed in the open air to avoid direct sunlight;
