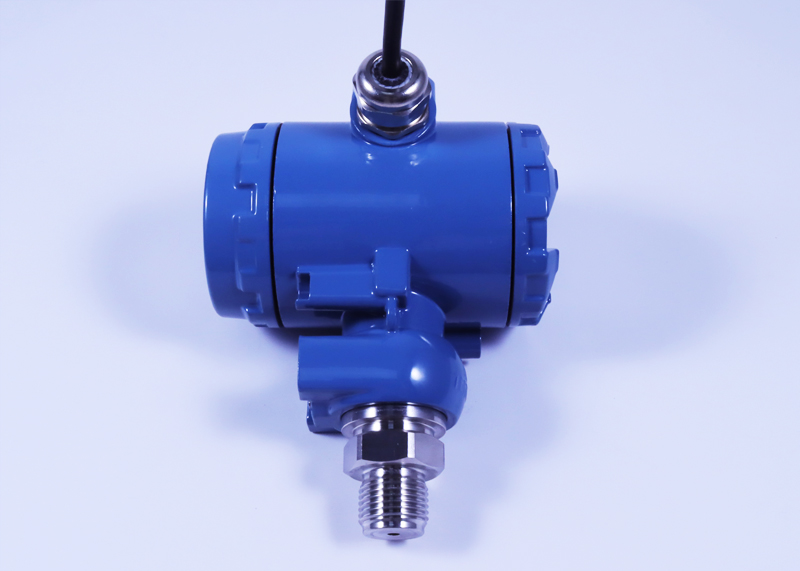

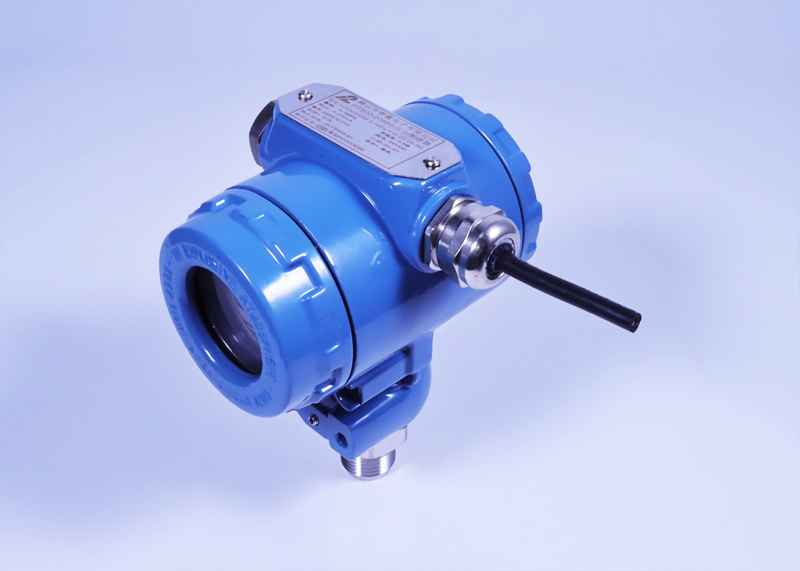

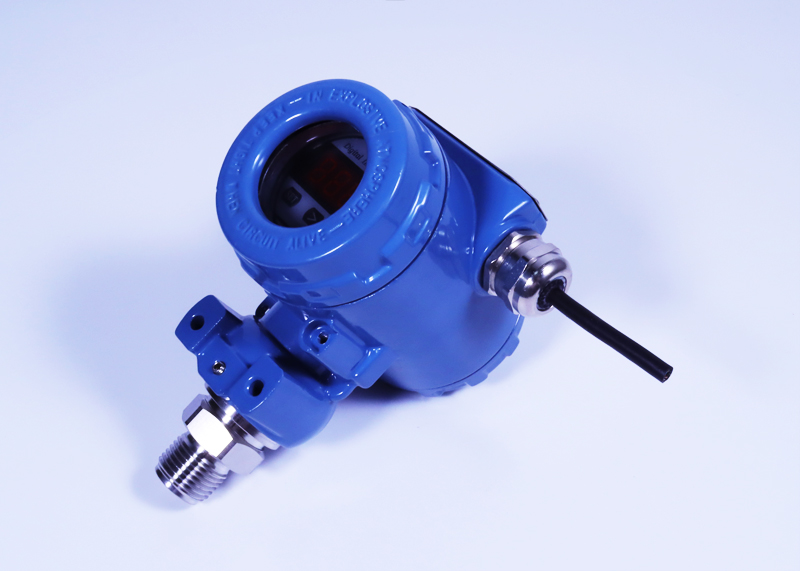

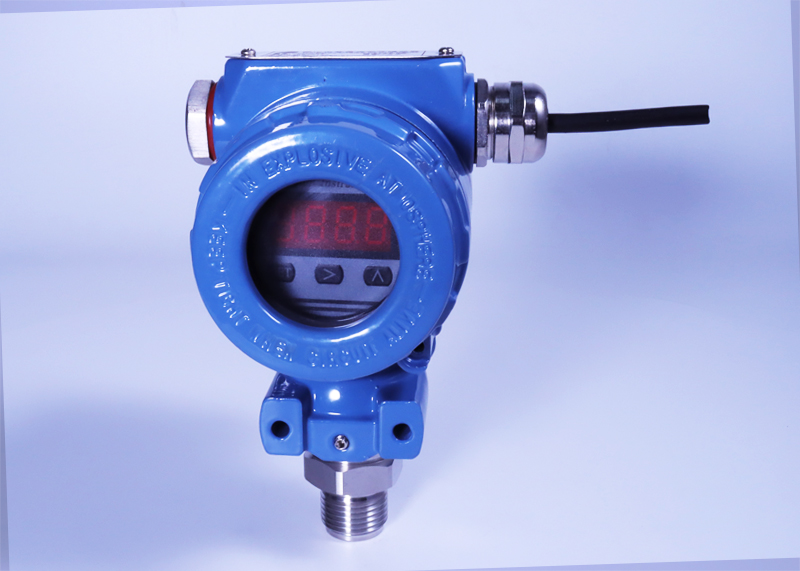

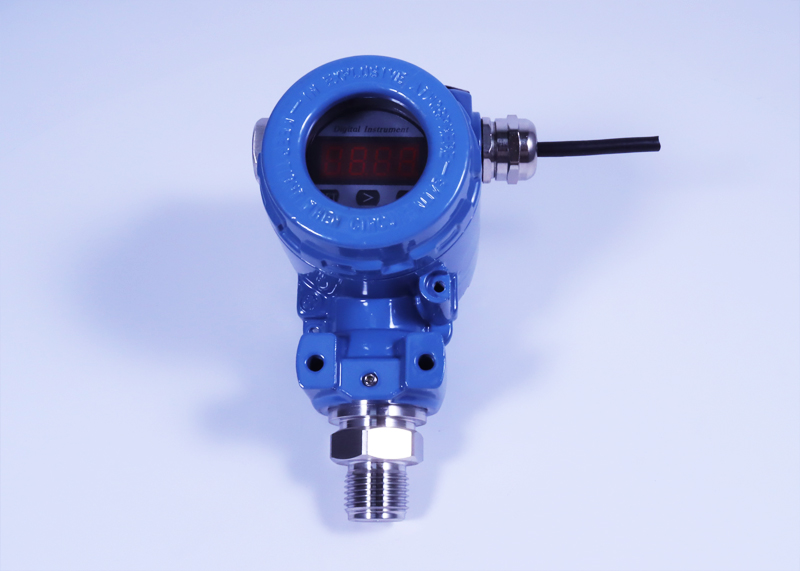

模數雙輸出壓力變送器PT500-2088TS

型號：PT500-2088TS

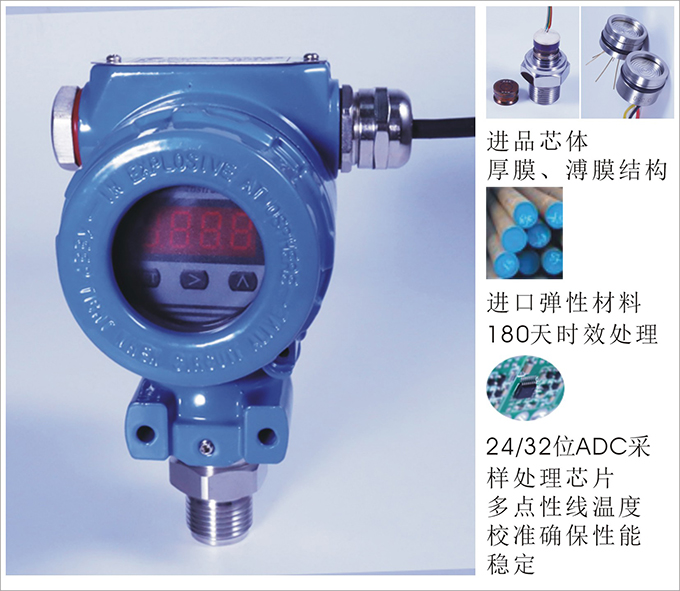

進口壓力芯體；
小量程芯片：充油硅芯片；
大量程芯片：壓阻式厚膜芯片；
32bit微處理器和24bit ADC高精度、穩定、數字放大電路；
零點、滿度，溫補、線性補償；
MODBUS RS485-RTU數字輸出/MODBUS RS485-RTU數字+4-20mA同時輸出；
四位顯示表頭，1位小數位；表頭采樣速率：10次/S
工業級2088鑄鋁合金防爆殼體；

常用關鍵字：
數字雙輸出壓力變送器模擬數字雙輸出壓力傳感器
數顯485通訊壓力變送器數顯帶通訊壓力變送器
RS485壓力表 RS485壓力計

產品優勢
規格參數
訂購注意事項
使用注意事項
常見問題
我要提建議

芯片：
采用進口感壓芯片；選進的貼片工藝；
高阻抗、高精度、高穩定性；
膜片結構：厚膜型壓阻式、溥膜型硅芯片、法蘭型大膜片；
100萬次使用壽命以上；

信號處理及輸出：
32bit微處理器和24bit ADC處理芯片；
DSP數字信號調理算法；
多點性線溫度校準；
電壓電流過載保護；
四位顯示壓力表頭，顯示范圍：-1999-9999，采樣速率：10次/S；
信號輸出：
MODBUS RS485-RTU數字輸出
MODBUS RS485-RTU數字+4-20mA同時輸出4-20mA(二線制)；
工業及設計，適合DCS系統、組態軟件、PLC系統；

結 構：
厚膜結構：深度氬弧焊接，連接彈性材料與過程接頭，強度高，抗沖擊，耐疲勞；
溥膜結構：激光焊接，連接彈性材料與過程接頭，硅油介質傳遞壓力，響應快，耐疲勞，小量程；
工業級2088鑄鋁合金防爆殼體，強度可靠堅固；
整體結構小巧，過程連接方式多樣化（M20X1.5,G1/2 ,ZG1/2,1/2NPT(螺紋小徑≥17mm)DN50等）；
過程連接材料：304或316；

應 用：
油壓、水壓、氣壓壓力測量與監控；
工業/電力/石油/自動化等領域的設備壓力測量

Chip:
It adopts imported pressure sensitive chip and selective placement technology;
High impedance, high precision and high stability;
Diaphragm structure: thick film piezoresistive, thin film silicon chip, flange type large diaphragm;
More than 1 million times of service life;

Signal processing and output:
32 bit microprocessor and 24 bit ADC processing chip;
DSP digital signal conditioning algorithm;
Multipoint linear temperature calibration;
Voltage and current overload protection;
Four digit pressure indicator, display range: - 1999-9999, sampling rate: 10 times / S;
Signal output:
Modbus rs485-rtu digital output
Modbus rs485-rtu digital + 4-20mA output 4-20mA (two-wire system);
Industrial and design, suitable for DCS system, configuration software, PLC system;

Structure:
Thick film structure: deep argon arc welding, connecting elastic material and process joint, high strength, impact resistance and fatigue resistance;
PU film structure: laser welding, connecting elastic material and process joint, transmitting pressure with silicone oil medium, fast response, fatigue resistance,

small range;
Industrial grade 2088 cast aluminum alloy explosion-proof shell with reliable strength;
The overall structure is compact, and the process connection mode is diversified (m20x1.5, G1 / 2, ZG1 / 2, 1 / 2NPT (thread diameter ≥ 17mm) DN50, etc.);
Process connection material: 304 or 316;

Application:
Measurement and monitoring of oil pressure, water pressure and air pressure;
Pressure measurement of equipment in industrial / power / Petroleum / automation fields

應用領域：

冶金設備
消防系統
石油化工
供氣系統
恒壓供水系統
液壓設備

產品家族：

一、技術參數
測量介質：液體、氣體（與產品過程連接材料兼容）
壓力形式：表壓、絕壓
量程：0～0.6、1、2、5、10、15、20、25、30、40、50、60、100（MPa）；
0～10、20、30、50、100、150、200、300、400、500、600（KPa）；
-100KPa～10KPa～40MPa；
±10KPa～±100KPa；
綜合精度：±0.25%FS；±0.5%FS；±1%FS
非線性：≤0.25%FS
重復 性：≤0.1%FS
輸出信號：
MODBUS RS485-RTU（四線制）
MODBUS RS485-RTU+4～20mA（四線制）
四位顯示，顯示范圍：-1999 - 9999
壓力表頭采樣速率：10次/S
供電電壓：24VDC(9～30VDC)
壽命：≥100萬次
絕緣阻抗：≥1000 MΩ/100VDC
負載阻抗：電流輸出: ≤800Ω；
介質溫度：-20～80℃
環境溫度：-20～70℃
補償溫度：0～70℃
響應時間：≤5mS
過載壓力：150%FS
破壞壓力：3倍量程(量程小于40MPa)；2倍量程(量程大于41MPa)
電氣連接：防水緊線螺母直接出線，可配套防爆電氣連接
防護等級：IP65/IP68
連接電纜：四芯屏蔽電纜，標準長度：3米
連接材料：304/316L
過程連接：M20X1.5,G1/2,ZG1/2，1/2NPT，DN50……可用戶制訂規格

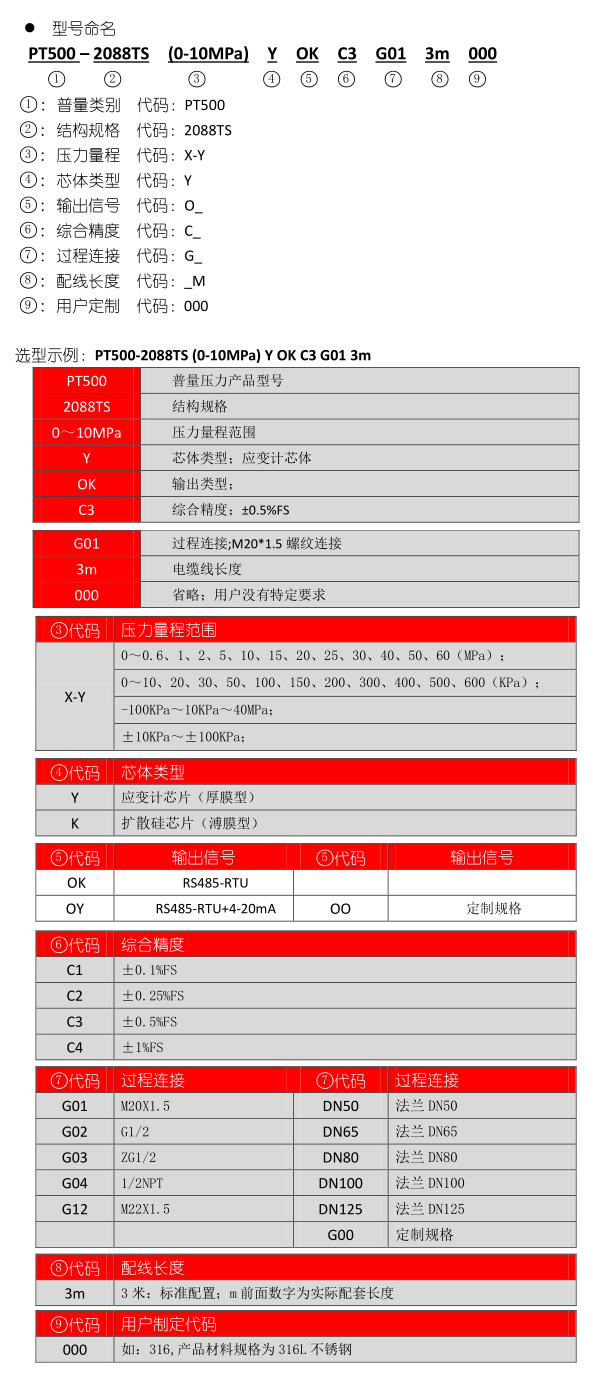

二、規格型號

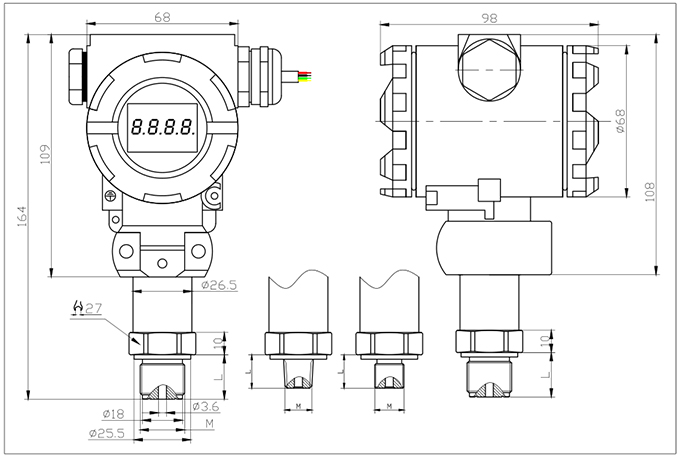

三、結構尺寸

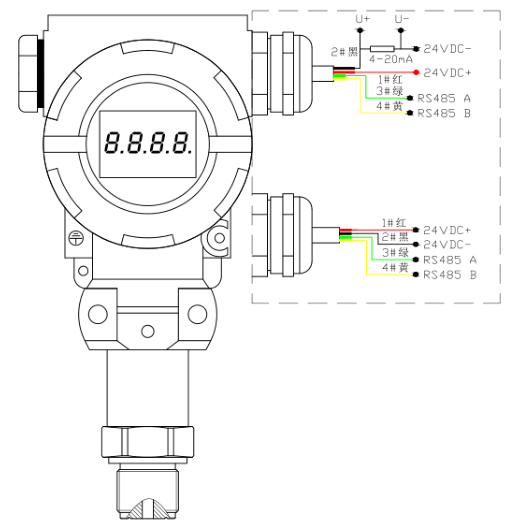

四、電氣連接

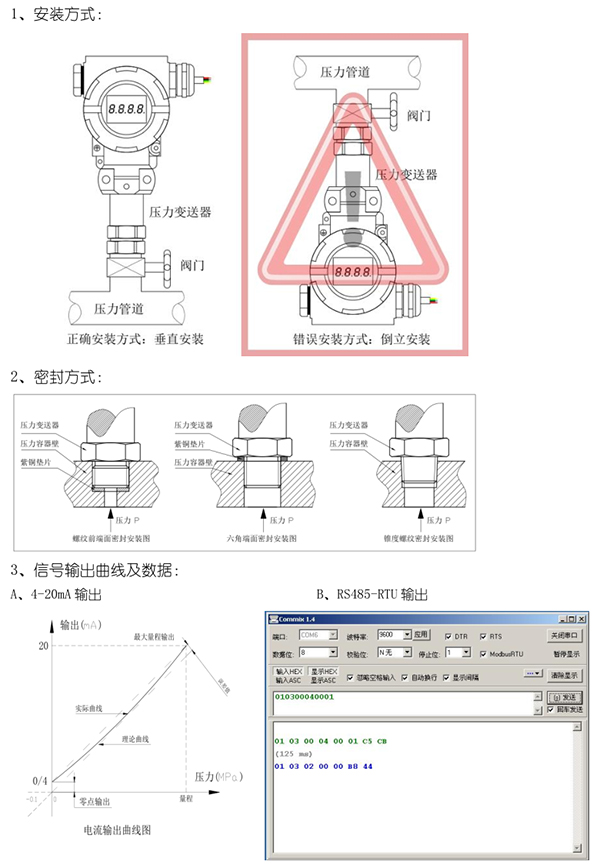

五、安裝方式

Technical parameters
Pressure form: gauge pressure, absolute pressure
Range: 0 ～ 0.6, 1, 2, 5, 10, 15, 20, 25, 30, 40, 50, 60, 100 (MPA);
0～10、20、30、50、100、150、200、300、400、500、600（KPa）；
-100KPa～10KPa～40MPa；
±10KPa～±100KPa；
Comprehensive accuracy: ± 0.25% FS; ± 0.5% FS; ± 1% FS
Non linear: ≤ 0.25% FS
Repeatability: ≤ 0.1% FS
Output signal:
Modbus rs485-rtu (four wire system)
Modbus rs485-rtu + 4 ～ 20mA (four wire system)
Four digit display, display range: - 1999 - 9999
Sampling rate of pressure gauge: 10 times / S
Power supply voltage: 24VDC (9-30vdc)
Service life: ≥ 1 million times
Insulation impedance: ≥ 1000m Ω / 100VDC
Load impedance: current output: ≤ 800 Ω;
Medium temperature: - 20-80 ℃
Ambient temperature: - 20 ～ 70 ℃
Compensation temperature: 0 ～ 70 ℃
Response time: ≤ 5ms
Overload pressure: 150% FS
Failure pressure: 3 times of range (range less than 40MPa); 2 times of range (range greater than 41mpa)
Electrical connection: direct outgoing line of waterproof fastening nut, supporting explosion-proof electrical connection
Protection grade: IP65 / IP68
Connecting cable: four core shielded cable, standard length: 3M
Connection material: 304 / 316L
Process connection: m20x1.5, G1/2, ZG1/2, 1/2NPT, DN50 Specifications can be made by users

PT500-2088TS產品訂購注意事項
1、產品量程選擇：
為了使產品精度、壽命、穩定性等功能達到最佳效果，產品的量程選擇參照以下公式計算：
量程 = 系統最大壓力 X （1.2-1.5）倍；
產品的實際測量壓力范圍，應該在量程范圍的15%-80%；

2、產品供電及輸出：
供電范圍的選擇按產品的個輸出規格確定：
RS485-RTU輸出；
RS485-RTU + 4-20mA
RS485-RTU輸出時，請先了解通訊協議；

3、用戶要了解產品的測量介質特性：
介質規格、介質溫度、介質純度（是否含有雜質或顆粒等）；

4、用戶要了解產品的安裝環境及安裝方式：
室內或室外安裝；
環境溫度；
要求的密封等級；
設備的振動范圍；
安裝方式：螺紋、法蘭、特殊結構；
安裝空間是否滿足產品外形尺寸；

1. Product range selection:
In order to achieve the best effect of product accuracy, life, stability and other functions, the range selection of the product is calculated by referring to the following formula:
Range = x (1.2-1.5) times of the maximum system pressure;
The actual measuring pressure range of the product should be 15% - 80% of the range;

2. Product power supply and output:
the output specifications of the product:
RS485-rtu output;
RS485-rtu + 4-20mA output;
When output rs485-rtu, please understand the communication protocol first;

3. The user should understand the measurement medium characteristics of the product:
Medium specification, medium temperature, medium purity (whether containing impurities or particles, etc.);

4. Users should understand the installation environment and installation method of the product:
Indoor or outdoor installation;
Ambient temperature;
Required sealing level;
Vibration range of equipment;
Installation method: thread, flange, special structure;
Whether the installation space meets the overall dimension of the product;

產品供電范圍，24VDC(9-30VDC)；
嚴禁使用硬物（如：螺絲刀、手指、鐵釘?shù)龋┤ナ沟脡毫δて軌毫y量輸出；
電源和信號線按訂購產品規格要求，正確接線；
產品安裝時，受力部位為“過程連接六方扳手位”，扳手規格與六方相對應；
嚴禁被測系統的介質溫度、壓力量程、激勵電壓超過變送器的額定使用范圍；
注意保護變送器引出電纜，現場使用跨度過大時，建議使用金屬管保護或架空；
壓力變送器屬精密計量儀器，切勿強加沖擊、摔打，以免損壞芯體
產品安裝于通風、干燥、無強腐蝕環境，露天安裝加防護裝置，避免陽光直接照射；
產品儀表嚴禁進水/漏水/泡水情況，露天安裝加防護裝置，避免陽光直接照射；

Product power supply range, 24VDC(9-30VDC);
It is strictly prohibited to use hard objects (such as screwdriver, finger, iron nail, etc.) to make the pressure diaphragm output under pressure measurement;
The power and signal wires shall be correctly wired according to the specifications of the ordered products;
During product installation, the stressed part is "process connection hexagon wrench position", and the wrench specification corresponds to hexagon;
It is strictly prohibited that the medium temperature, pressure range and excitation voltage of the tested system exceed the rated use range of the transmitter;
Pay attention to protect the outgoing cable of the transmitter. When the span is too large on site, it is recommended to use metal pipe for protection or overhead;
The pressure transmitter is a precision measuring instrument. Do not impose impact or smash to avoid damaging the core
The product is installed in a ventilated, dry and non corrosive environment, and installed in the open with protective devices to avoid direct sunlight;
It is strictly prohibited to enter / leak / soak water in the product instrument, and protective devices shall be installed in the open to avoid direct sunlight;
